High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer

Brand Name : Hh

Model Number : 2500mm

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotiated

Payment Terms : T/T

Supply Ability : 30 sets every month

Delivery Time : 15-30 days

Packaging Details : plastic

Applicable Industries : Corrugated Cardboard Industry

Video outgoing-inspection : Provided

Driven Type : electric

Maximum paper feeding width : 2500mm

Minimum distance between crimping lines : 40-140mm

Blades & scorer : Servo Motor 4b & 6s

Minimum feeding length : 450mm

Slitting and crimping accuracy : ±0.5mm

Adjust knife : by computer

Contact Now

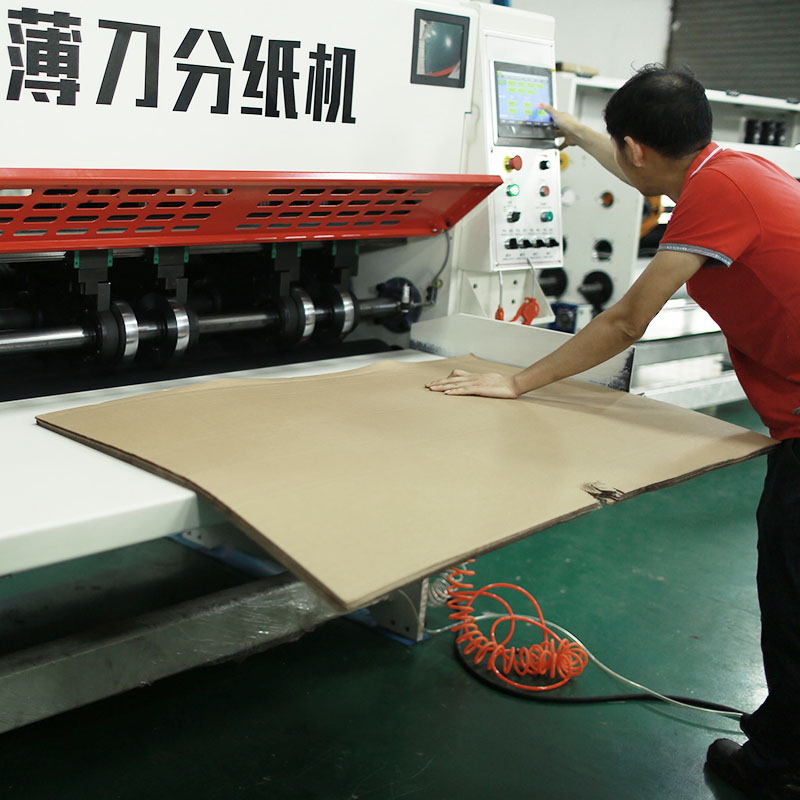

High Speed Thin Blade Slitter Scorer Corrugated Carton Box Machine

1. In the production process of corrugated boxes, this machine is a carton mechanical equipment that completes the pre-pressing,conveying, paper-separating and line-pressing processes at one time.
2. The equipment adopts servo motor and PLC touch screen control, which can complete cutting and crimping at one time.
3. Simple operation, portable setting, servo motor can quickly change orders within 5 seconds, which greatly improves work efficiency.
4. Combination of knife adjustment and line-pressing servo motors and slide rails, helical gear transmission, more precise adjustment and smoother walking.
5. The main transmission adopts spline transmission, which has uniform force and is not easy to wear.
High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer

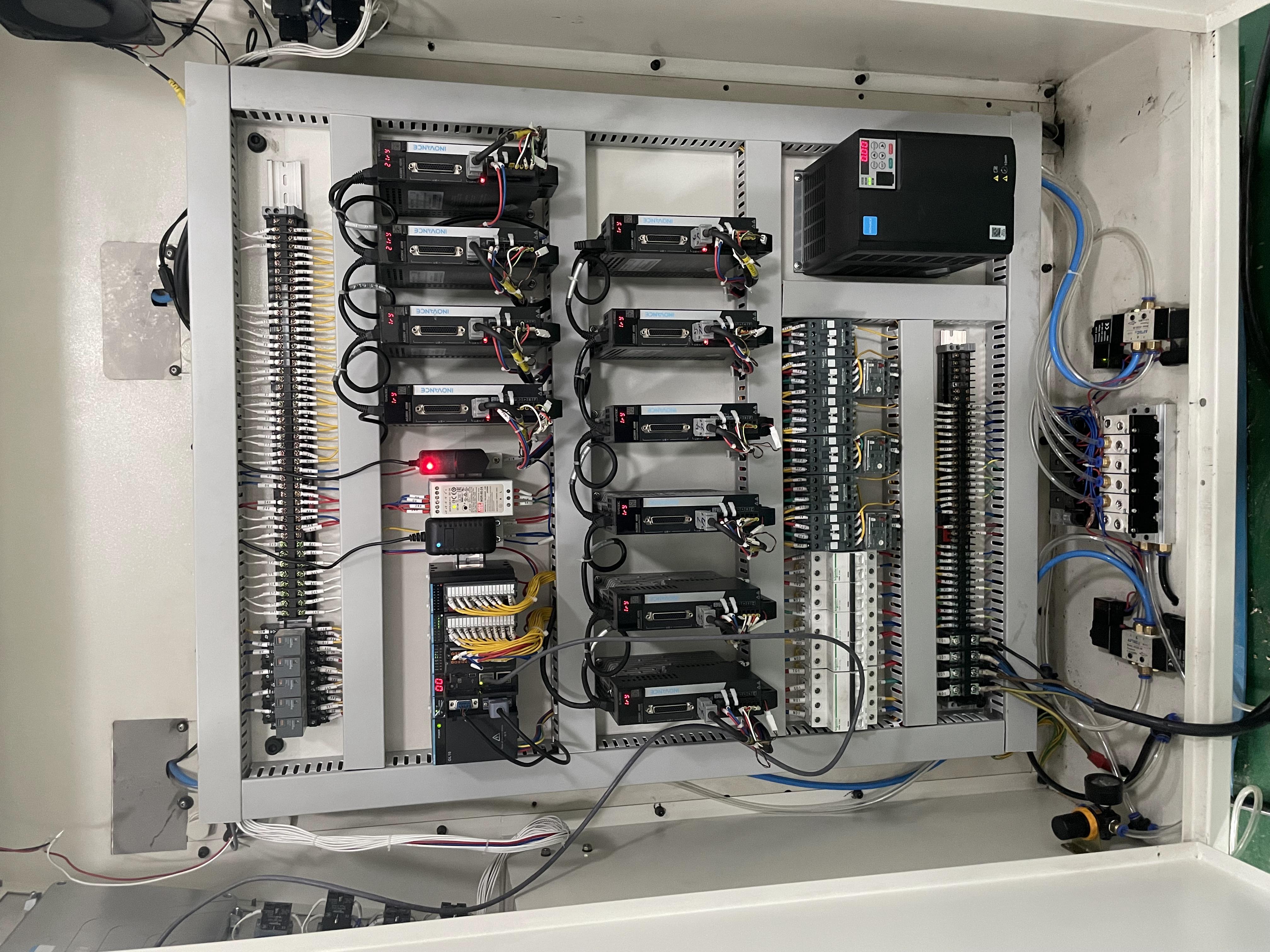

PLC Control
⭐Simple operation: select the carton type, enter the carton size information, and press a key to complete the knife adjustment.
⭐Production efficiency: Quickly produce small orders, save time for tool adjustment, and improve work efficiency.
Easy to Operate
⭐Fast order change: Only 1-5 seconds to change order, and the processing efficiency of scattered orders is very high
⭐Only need to scan the QR code to export the order information
⭐Order storage: The system can store1,000 orders
High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer
High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer
Model
HT-DF-25A
HT-25A
Blades & scorer
Servo Motor 4b & 6s
Servo Motor 5b & 8s
Pressure adjustment
Auto
Speed
200nm/min
Max. feeding width
2500mm
Max. slitting width
2500mm
2500mm
Min. slitting width
140mm
140mm
Min. scoring width
40×140mm
40×140mm
Slitter Accuracy
±0.5mm
Main motor power
4KW
Dimension (LxWxH)
3460x1500x1530mm
Overall net weight
Approx 3000kg
High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer
